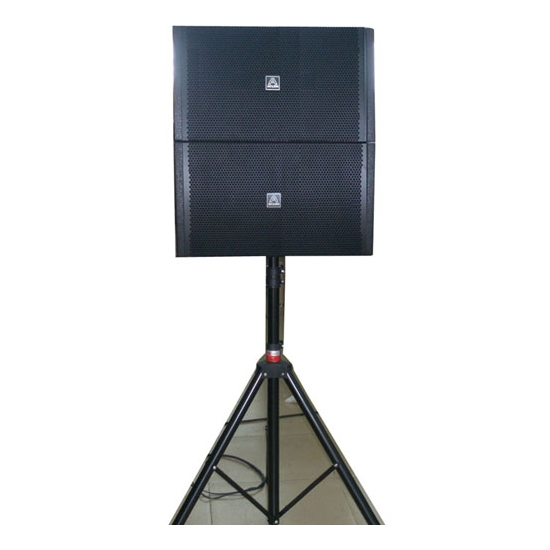

VX12LA 12Inch 400W compact line array speaker< back

zoom in zoom out

move up move left move right move bottom

  • Specifications
  • Feature
  • Application
  • Download
  • Print
  •

    VX line array feature:

    ***3pcs drivers + 1pc 12 woofer + wave guide horn

    ***Plywood cabinet + safety hardware (pins, U-button, fly bar etc)

    ***Aluminum back panel

    ***Coverage angle: H100 degree * 14 degree

    ***Frequency: 70Hz-19KHz

    ***Mounting method: 35MM pole, tripod, fly bar


    Model VX12LA VX18S VX8LA VX15S
    LF woofer unit 1x12"  1x18" ferrite 1x8"  1x15" ferrite
    HF drivers 1X3" / 2 x1.4" /
    Frequency Range(-10dB) 57Hz-20 KHz 31Hz-230Hz 70Hz-20KHz 35Hz-250Hz
    Frequency respones (-3dB) 75Hz-20KHz 35Hz-200Hz 87Hz-19 KHz 40Hz-250Hz
    Coverage Angle H100°× 15° / H100°× 15° /
    Rated power / Program 600W/1200W 800W/1600W 400W/800W 600W/1200W
    Peak power 1800W 2400W 1200W 1800W
    Nominal MAX /Peak SPL 137dB SPL 131dB SPL 128dB SPL peak 127dB SPL
    Crossover 1.9 KHz 150HZ 2.0 KHz  150HZ
    Nominal Impedance 8 Ohms 4 Ohms 8 Ohms 4 Ohms
    Dimensions(W×DxH) 595×375×350mm  597×749×508mm 230*419*267 496*418*597mm
    Net Weight 22kg 38kg 10kg 26kg
  • Application:

    Theater places expand sound systems.

    Touring FOH system

    Audio & video presentations sound system

    Mobile or permanently live concert reinforcement
