18inch subwoofer high powerful speaker< back

zoom in zoom out

move up move left move right move bottom

  • Specifications
  • Feature
  • Application
  • Download
  • Print
Share

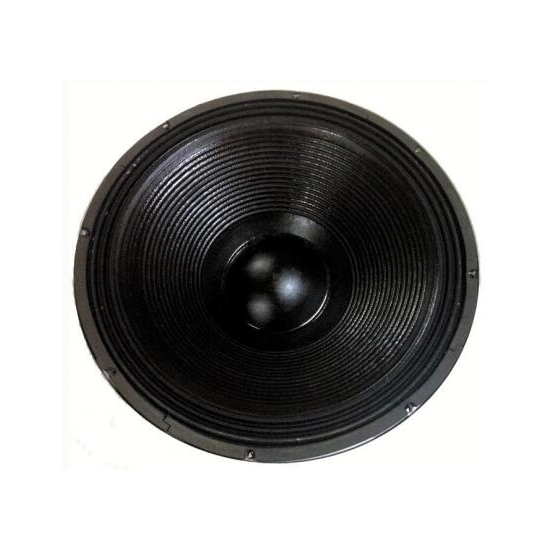

  •  18" subwoofer speaker unit



    Model 18NW100 18SW115 18PS100 18CBX100 18CY100
    Inch 18" neo 18" neo 18" ferrite 18" ferrite 18" ferrite
    Rated power (AES) 1200W 1700W 700W 1200W 700W
    Program power (AES) 2400W 3400W 1400W 2400W 1400W
    Voice coil diameter 100mm (4 inch) 116mm (4.5 inch) 100mm (4 inch) 100mm (4 inch) 100mm (4 inch)
    Basket material  Aluminum Aluminum Aluminum Aluminum Aluminum
    Magnet type N40H N40H Ferrite, Y35 Ferrite, Y35 Ferrite, Y35
    Sensitivity/Nominal 98dB (±1dB) 96.5dB (±1dB) 97dB (±1dB) 97dB (±1dB) 95dB (±1dB)
    Frequency range 35-1000 Hz 35-1500 Hz 35-1500 Hz 35-1500 Hz 30-1500 Hz
    Fs 31Hz 35Hz 30Hz 34Hz 30Hz
    Re 5.1 ohm 5.3 ohm 5.3 ohm 5.1 ohm 5.3 ohm
    Qes 0.27 0.37 0.41 0.37 0.41
    Qms 4.2 6.3 4.6 7.2 4.6
    Total factor (Qts) 0.26 0.35 0.39 0.35 0.39
    Le 1.7mH 1.9mH 2.1mH 1.6mH 2.1mH
    EBP 114Hz 100Hz 73Hz 91Hz 73Hz
    Standard impedance 8 OHM 8 OHM 8 OHM 8 OHM 8 OHM
    Overall diameter 460mm (18in) 460mm (18in) 360mm (18in) 460mm (18in) 360mm (18in)
    bolt circle diameter 440mm (17.3in) 440mm (17.3in) 440mm (17.3in) 440mm (17.3in) 440mm (17.3in)
    baffle cutout diameter 422mm (16.6in) 422mm (16.6in) 422mm (16.6in) 422mm (16.6in) 422mm (16.6in)
    Depth 209mm (8.2in) 242mm (9.5in) 197mm (7.75in) 209mm (8.2in) 197mm (7.75in)
    Flange and Gasket Thickness 16mm (5/8in) 16mm (5/8in) 16mm (5/8in) 16mm (5/8in) 16mm (5/8in)
    Net weight / gross weight 9.3kg / 10.9kg 10.2kg / 11.7kg 10.5kg / 12kg 13kg / 14.5kg 10.5kg / 12kg
    shipping box / mm 520*520*250 510*510*270 510*510*270 510*510*240 510*510*270

  • 1. High powerful ferrite woofer.

    2. 1000W continuous program power capacity.

    3. 76mm (3in) copper voice coil.

    4. 40-2000Hz response

    5. 98dB sensitivity.





  • line array speaker, loudspeaker
