high power DSP 1U 4channel digital amplifier< back

zoom in zoom out

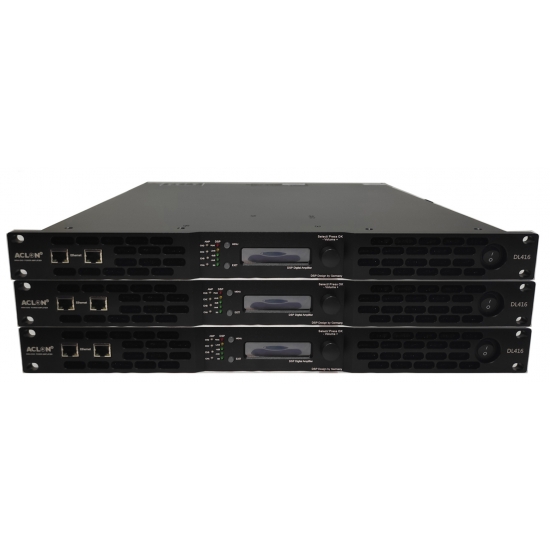

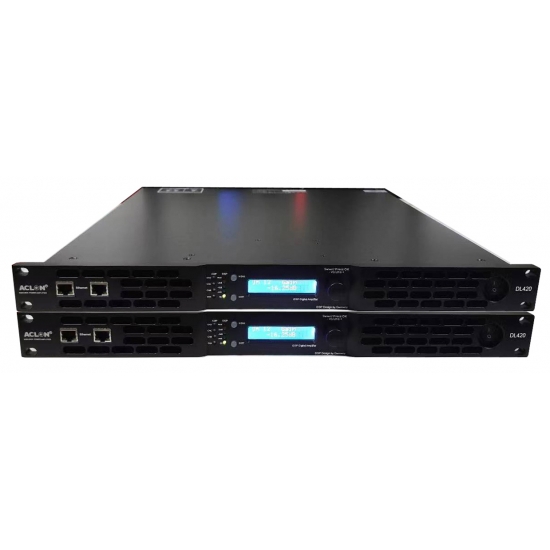

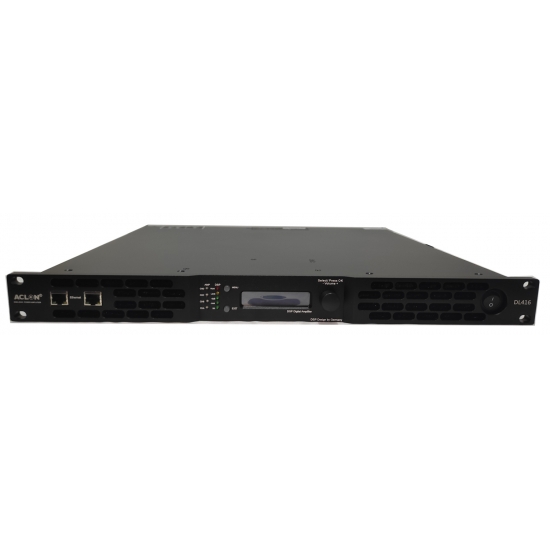

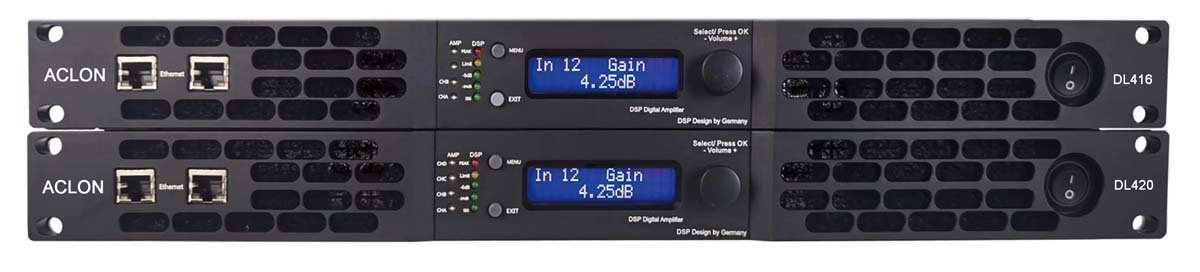

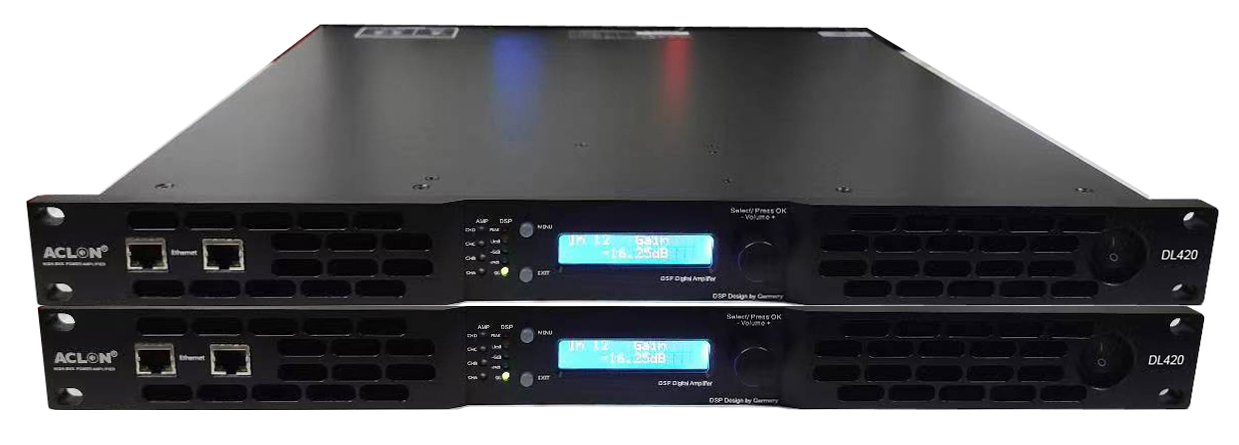

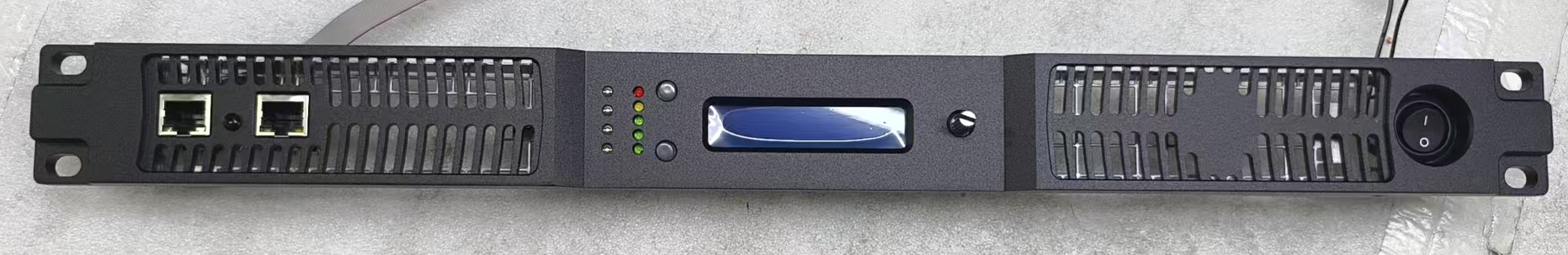

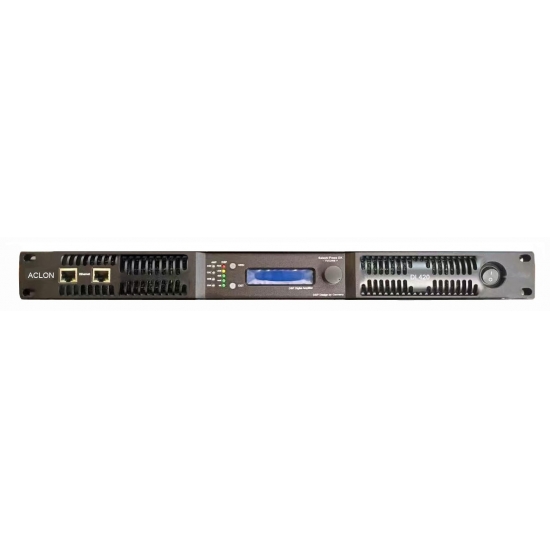

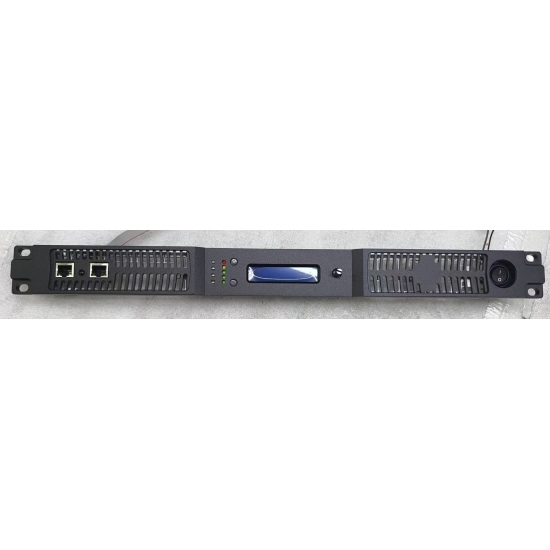

ALON Audio High-ended DL DSP digital amplifier specification

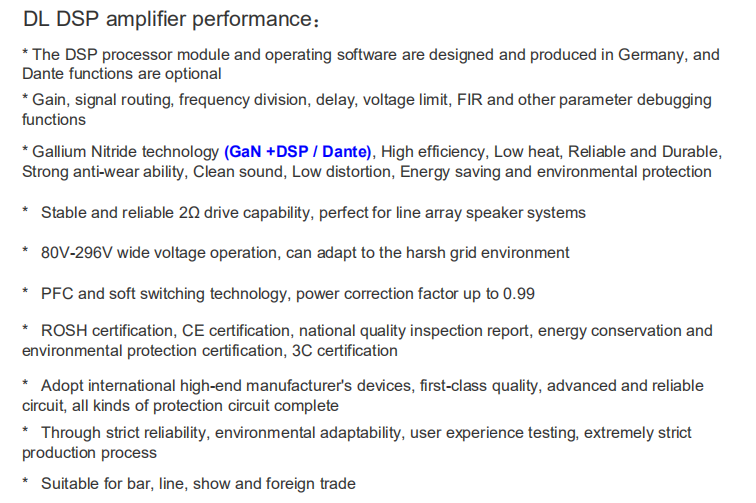

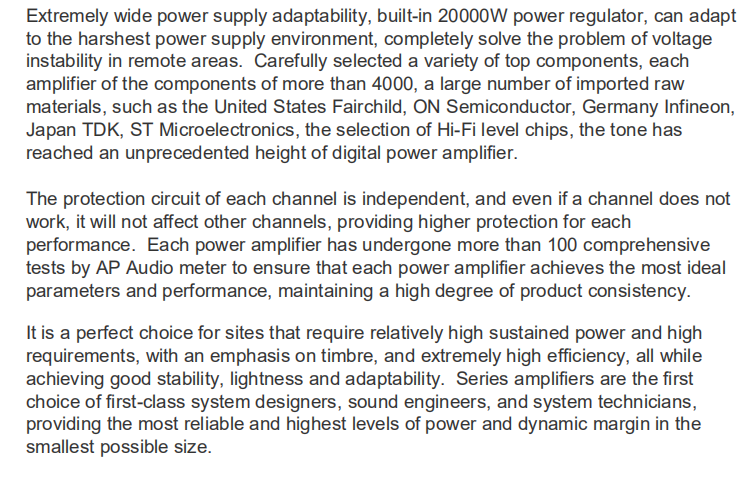

DL Series is high-ended DSP digital amplifier, build in German ALL DSP;

adopted imported raw materials such as transistor, capacitor, IC etc.

Imported materials + high efficiency cooling system + advanced D circuit technology insure amplifier work stable for long work.

power supply 90V-270V etc. It can connect with PC

It is one of the most powerful and most advanced technologically power amplifier on audio market.

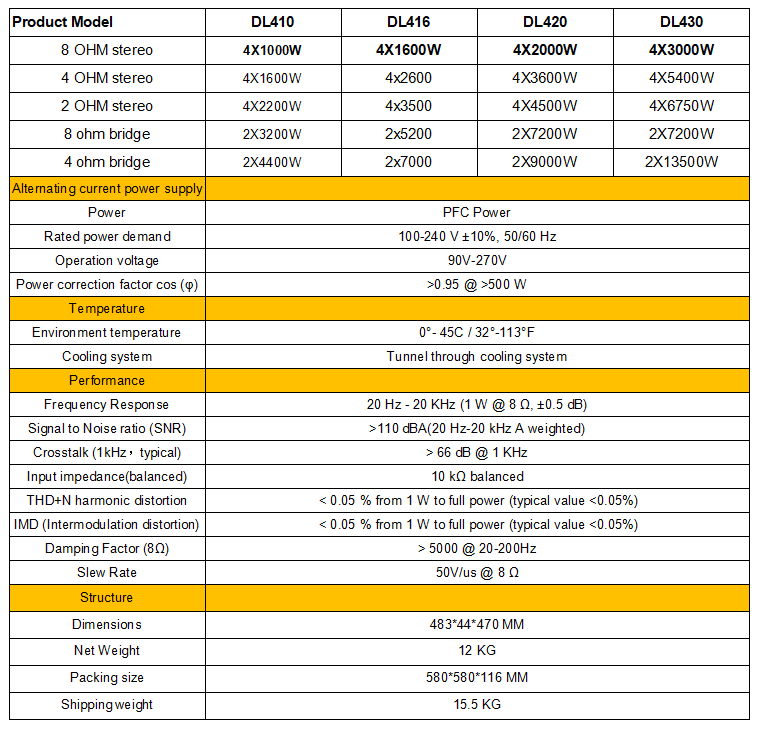

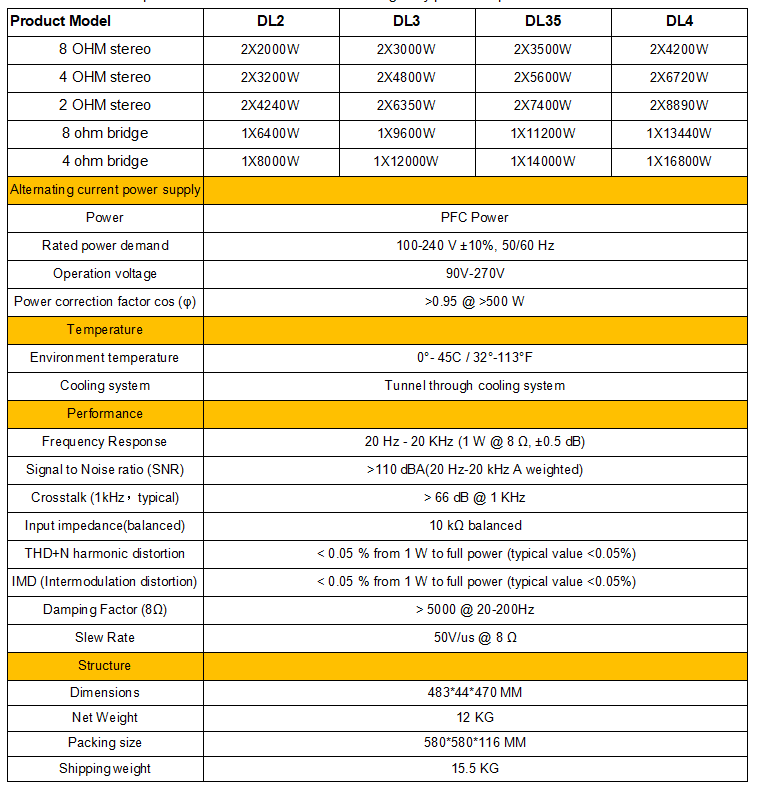

Product Model	DL420	DL416	DL410	DL2000	DL3000	DL4200
8 OHM stereo	4X2000W	4X1600W	4X1000W	2X2000W	2X3000W	2X4200W
4 OHM stereo	4X3600W	4x2600	4X1600W	2X3200W	2X4800W	2X6720W
2 OHM stereo	4X4500W	4x3500	4X2200W	2X4240W	2X6350W	2X8890W
8 ohm bridge	2X7200W	2x5200	2X3200W	1X6400W	1X9600W	1X13440W
4 ohm bridge	2X9000W	2x7000	2X4400W	1X8000W	1X12000W	1X16800W
Frequency Response	20Hz-20kHz,+0/-1dB
THD+N	<0.5%,20Hz-20kHz
IMD-SMPTE	0.0005
Slew Rate	50V/us @ 8 Ω
Damping Factor	>5000 @ 20-200 Hz
Signal to Noise ratio	>110dB
Crosstalk	—75dB
gain select	32dB/35dB/38DB/41dB
Power supply	AC:90V-270V(50-60Hz)
Dimensions	48346044
Net Weight (KG)	12KG

Parameter			Unit
Inputs	Analog Inputs (single ended)	4
	Dynamic Range	typ. 120	dB(A)
	Max. Input Level	+20	dBu
	Input Impedance (single ended)	11	kΩ
	Digital Inputs	-
Outputs	Analog Outputs	4
	Dynamic Range	typ. 110	dB(A)
	Maximum Output Level (default setting)	+14	dBu
	Output Level Setting (by jumper)	+8 / +14	dBu
	Source Impedance	235 / 470	Ω
	Digital Outputs	-
System	Input-to-output latency	510	µs
	Gain	0 +/- 0.5	dB
	Dynamic Range (unity gain)	typ. 107	dB(A)
	THD (@ 0dBu, 1kHz, unity gain)	< 0.003	%
	Frequency Response	10…20k	Hz +/-0.5dB

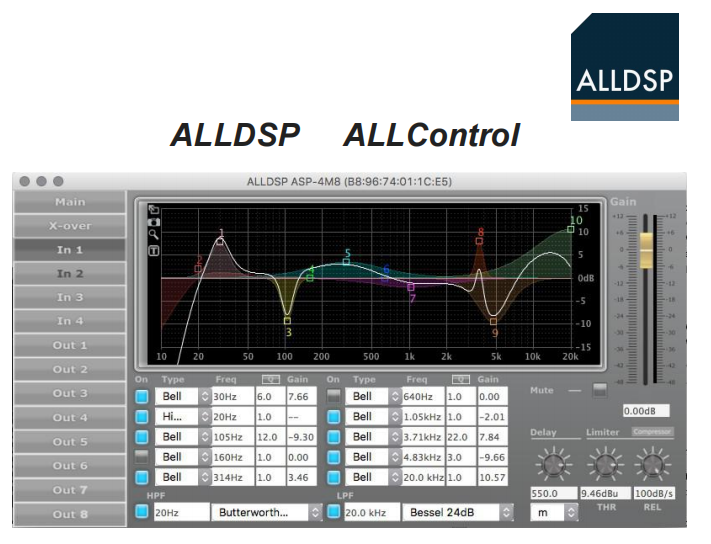

DSP,64 bit multimode ALLDSP AM685	Number of processors	1
	Sample rate	48	kHz
	FIR	4x144	taps
	Presets	100
	Delay	10	ms
	PEQ (each input and output)	10	bands
	Grouping EQ (each input)	5	bands
	Crossover (each input, LPF and HPF)	24	dB/Oct
	Crossover (each output, LPF and HPF)	48	dB/Oct
	Filtered Compressors (each input and output)	4	bands
	Limiter (switchable true RMS / Zero Attack, each in and out)	1	bands
