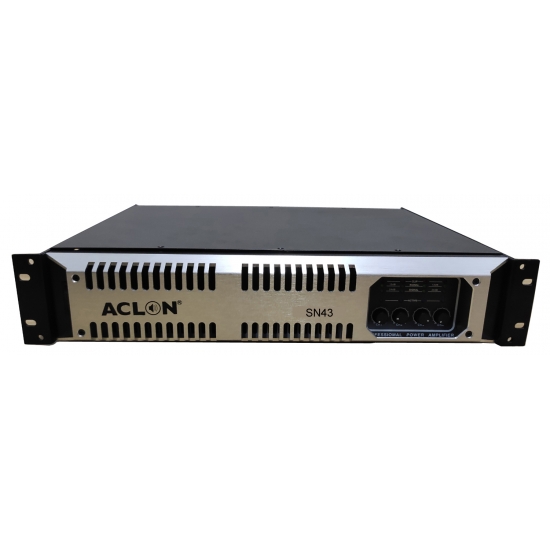

SN series is economy switch amplifier, from 300W to 1600W have 2CH and 4CH for you choose.
It is Light weight only 7KG, class D circuit. Application: church, wedding, nightclub,theater,speech, party, disco etc
Good quality, good sound, work stable.
Model SN43 SN46 SN1200 SN1600 8ΩStereo Power 4X300W 4X600W 2X1200W 2X1600W 4ΩStereo Power 4X450W 4X900W 2X1800W 2X2000W 8ΩBridged Power / / / / FrequencyResponse 20Hz-20kHz.(+/- 0.5dB) THD+N <0.04% 20Hz-20kHz.(8Ω) Signal-to-Noise Ratio >105 dB Damping factor >1000 Cross talk at1 kHz >70 dB Input Connectors 3-pin XLR, electronically balanced Output Connectors Speakon Class circuitry Class D Tour Class Protection DC, short circuit, over load, clip limit, over heat, Operating voltage 110V; 230V or customize Input impedance Balance/20K Unbalance /10K Dimensions (H×W×D) 2U: 88×485×355mm Packing dimension 565x140x560mm Net weight (kg) 7KG
-
Theater places expand sound systems.
Touring FOH system
Audio & video presentations sound system
Mobile or permanently live concert reinforcement
Related Tags : two channel big watt power amplifier 800W high output power amplifier CA18 crest power amplifier
Previous :DH4-1200: 1200W four channel digital switch amplifier
