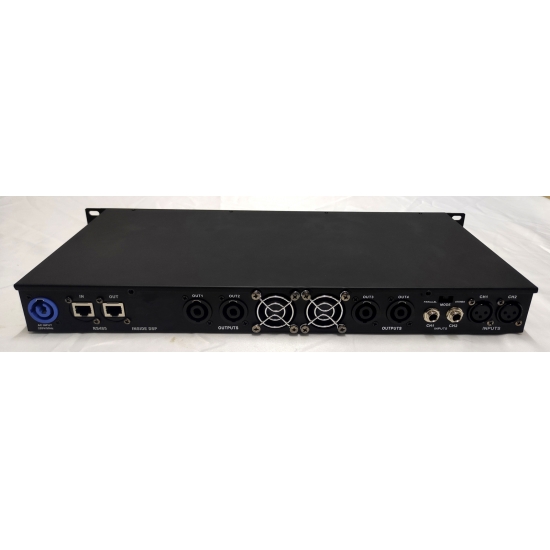

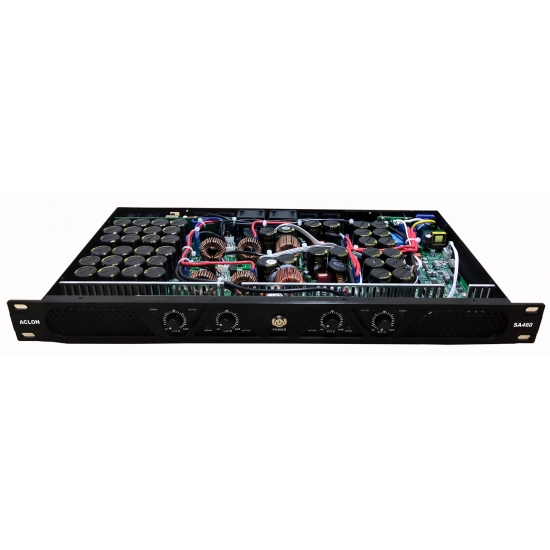

SA series is DSP switch lightweight amplifier, 1U rack
It is Light weight only 6KG, class D circuit. Application: church, wedding, nightclub,theater, party, disco etc
Good quality, good sound, work stable.
Model SA4600 DSP SA1100 DSP SA600 DSP 8ΩStereo Power 4X600W 2X1000W 2X600W 4ΩStereo Power 4X960W 2X1600W 2X960W FrequencyResponse 20Hz-20kHz.(+/- 0.5dB) THD+N <0.04% 20Hz-20kHz.(8Ω) Signal-to-Noise Ratio >105 dB Damping factor >500 Cross talk at1 kHz >70 dB Input Connectors 3-pin XLR, electronically balanced Output Connectors Speakon Class circuitry Class D Tour Class Protection DC, short circuit, over load, clip limit, over heat, Operating voltage 110V; 230V or customize Input impedance Balance/20K Unbalance /10K Dimensions (H×W×D) 1U: 44×480×230mm Packing dimension 320*540*100mm Net weight (kg) 6KG
-
Theater places expand sound systems.
Touring FOH system
Audio & video presentations sound system
Mobile or permanently live concert reinforcement
-
4
-
