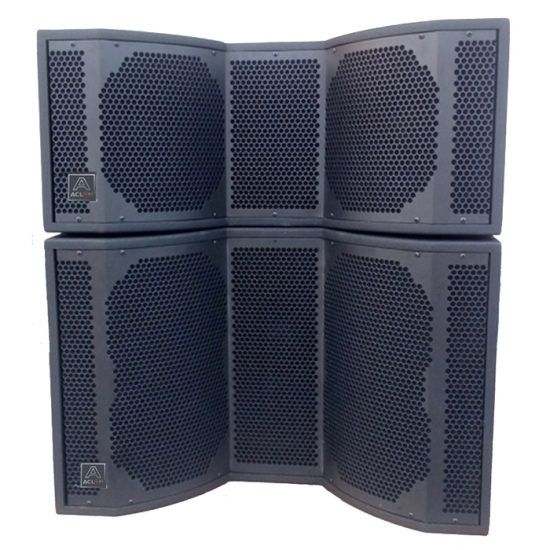

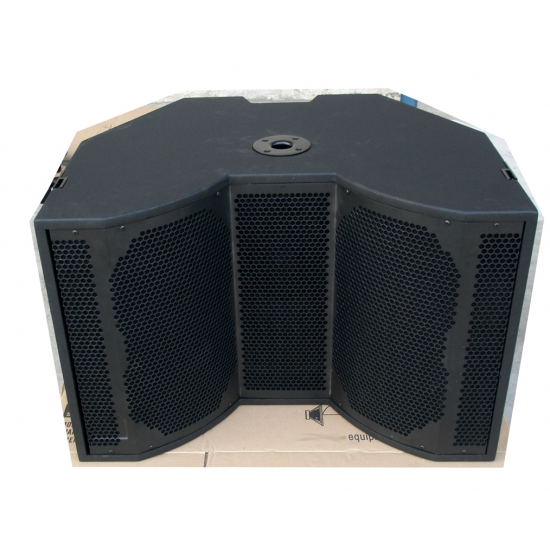

AK18S 18inch 600W subwoofer line array speaker< back

zoom in zoom out

Specifications
Feature
Application
Download
Print

Title	Specification
System Type	TWO way full range line array system		Bass line array
Products Model:	AK8	AK10	AK15S	AK18S
LF driver unit Inch(aluminium frame) Voice Coil Dia	2 x 8"(VC50mm)	2 x 10" (VC66mm)	1 x 15" (VC100mm)	1 x 18" (VC100mm)
HF neodymium drivers	1.7" neodym(44mm)	3" neodym (75mm)	/	/
Directivity Dispersion patented loaded Horn. Exit throat Size	1"(25mm)throat	1.5"(38mm)throat	/	/
Dispersion Angle (H * V)	H90°x 12°Vertical splay Angle Varies with array size configuration		/	/
System Performance Section
Power rating/Program/peak	700W /1400W/2100W	900W /1800W /2700W	600W/1200W/1800W	750W/1500W/2250W
LF Power rating /AES	320W*2	400W*2	600W	750W
HF Power rating/AES	60W	110W	/	/
Nominal Impedance LF	LF 8 Ohm	LF 8 Ohm	8 Ohm	8 Ohm
HF	HF 8 ohm	HF 8 ohm	/	/
LF Sensitivity (SPL )Nominal1w/1m	LF 96dB	LF 98dB	LF 98dB	LF 98dB
HF Sensitivity (SPL )Nominal	HF106dB	HF108dB	/	/
LF Nominal Peak SPL at 1m	LF 118dB	LF 125dB	LF 125dB	LF 126dB
HF Nominal Peak SPL	HF126dB	HF132dB	/	/
Frequency Response( ±3dB)	65Hz - 19KHz	60Hz - 19KHz	50Hz - 220Hz
Usable Range at-6dB	58Hz - 20KHz	55Hz - 20KHz	40Hz - 250Hz
Recommend Crossover Frequency point	1.8 KHz	1.7 KHz	150 Hz
Nominal Impedance	16 Ohms		8 Ohms
Harmonic distortion	≦0.05%
Appearance Section
Input Connector Bi AMP	2*NL4 Speakon ( Input Pin±1=±1LF , Pin±2= ±2HF)		2 *NL4 Speakon Input Pin±1=±1LF,Pin±2= N/C
Protective Grille	Perforated steel grille, Black
Appearance	Textured Polyurethane painted finished
Enclosure material	Baltic Birch 15&18 mm Multi-laminate Plywood finished
Rigging -Flyings Handle	2 integrated cabinet handle
Suspension (Top frame)	Suspension requires optional ARC line-array Top Fly frame kit , hardware & M10 Pin
Shipping Dimensions (mm)	670x520x300	760600336	670x 520x 460	760600520
Net weight	25 kg	32 kg	38KG	43KG
Recommend combo Systems:	Right side: 8pcs full range + 2pcs sub + 1pcs fly bar Left side: 8pcs full range +2pcs sub + 1pcs fly bar

1. Adopt imported neodymium woofer and drivers, high powerful, high performance

2. Cabinet made by birch plywood. Its strong, moistureproof, lightweight.

3. Each side with handle easy to move;

4. Between two boxes supply pin lock them. All hardware is included.

5. Weather-resistant, multipurpose, it can hang in the sky or stack on the ground.

6. Simply install, convenient, one-person can easy hang complete system

7. Net weight: 29KG
.Theater places expand sound systems.
. High efficiency Touring FOH system.
. The bigger club sound reinforcement systems.
. Audio & video presentations sound systems.
. Fixed Installations system and Live sound reinforcement

AK18S 18inch 600W subwoofer line array speaker
