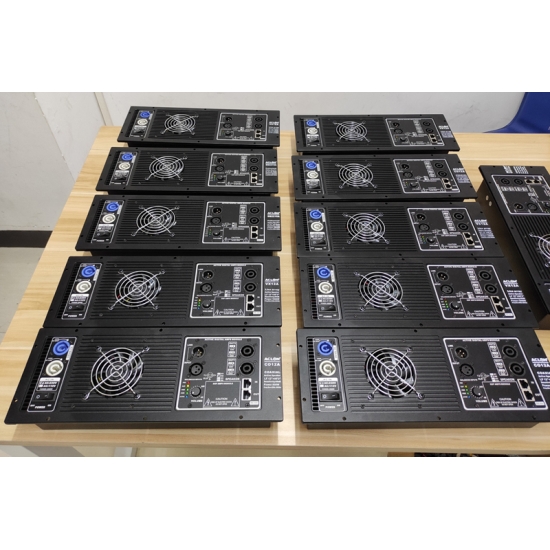

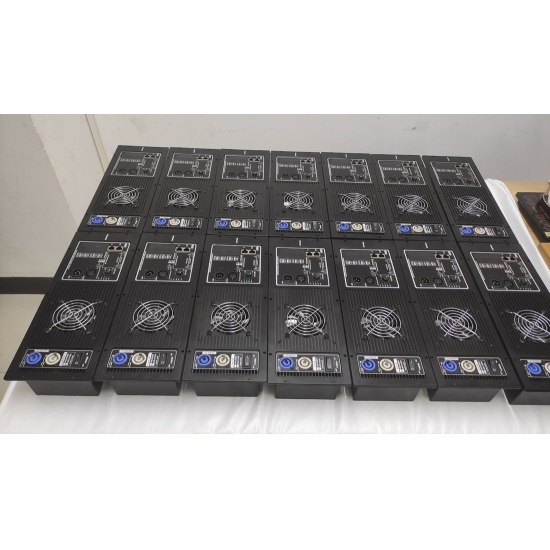

DSP series amplifier modules, including 1 ch, 2 ch, ch 3 and 4 ch, suit for all kind of speaker.
1.Select high quality imported raw materials, such as transistor, IC, capacitors, etc
2.Advanced class D circuit, inside have aluminum heatsink, better cooling system,
3.efficiency reached more than 92%, low calorific value, more stable and reliable and durable performance.
4. The 1200W power only 3.82 KG, is currently on the market a strong power, stable performance and advanced technology of one of the active amplifier module products.
4.With DSP software connected to the computer through the RS - 485 control. More convenient and more flexible applied to different tour events
5.High cost performance, delivery fast.
suit for all kind of speaker.
Model DSP500 DSP3500 DSP313 DSP4500 DSP1000 DSP21000 Channel 2 channel 3 channel 3 channel 4 channel 1 channel 2 channel Output Power（8Ω） 600W+150W 2*600W +150W 2*600W +1200W 4X600W LF 1200W 2*1200W Output Power（4Ω） 960W+250W 2*960W+250W 2*960W+1920W 4X960W 1920W 2*1920W Output Circuit LF Class D Input impedance Balance/20K Unbalance /10K Frequency response 20Hz-20kHz.(+/- 0.5dB) THD+N <0.04% 20Hz-20kHz.(8Ω) SLEW RATE >60V/μs S/N RATE >105 dB DAMPING FACTOR >500 COOLING SYSTEM HEATSINK AND FANS PROTECTION DC, short circuit, over load, clip limit, over heat, POWER SUPPLY AC220V/50Hz.±10% / AC110V/60Hz.±10% according to customer’s needs DIMENSION (mm) 376mm*142.5*82mm N.WKG） 3.8 kg
Build in DSP active module, lightweight, high reliability, work stable.
DSP is build with 30 different presets. Users can choose the presets according to their needs via PC.
-
8" line array speaker
10" line array speaker
12" line array speaker
8" stage monitor speaker
10" stage monitor speaker
12" stage monitor speaker
15" stage monitor speaker
- DSP3500 amplifier module software
