Product Description
Welcome to ACLON audio factory. We are your one stop source for all of your Sound, Staging and Production needs. Whether you are looking to wholesale purchase or are looking for full concert production services, ACLON is here for you!
ACLON DSP series is designed to match pro audio system self powered.
its flexible output power is available for different cabinet: 2 ways active speakers,3 ways line arrays, subwoofer, column box etc.

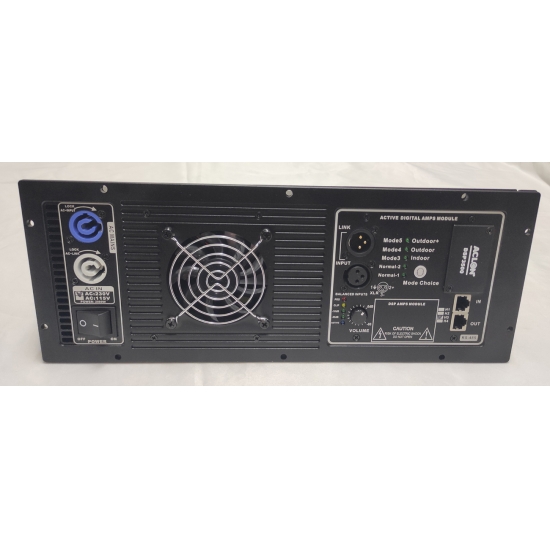

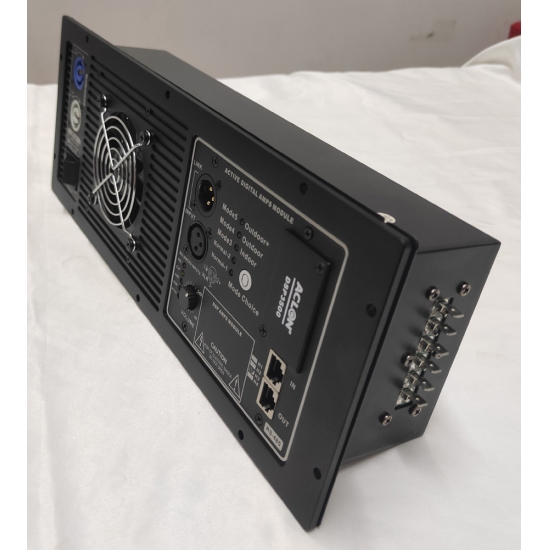

DSP4500 amplifier modules, suit for 3-way speaker.
1.Select high quality imported raw materials, such as transistor, IC, capacitors, etc
2.Advanced class D circuit, inside have aluminum heatsink, better cooling system,
3.efficiency reached more than 92%, low calorific value, more stable and reliable and durable performance.
4.only 3.82 KG, is currently on the market a strong power, stable performance and advanced technology of one of the active amplifier module products.
4.With DSP software connected to the computer through the RS - 485 control.
Model DSP4500 Output Power（8Ω） 4X600W Output Power（4Ω） 4X 960W Output Circuit LF Class D Input impedance Balance/20K Unbalance /10K Frequency response 20Hz-20kHz.(+/- 0.5dB) THD+N <0.04% 20Hz-20kHz.(8Ω) SLEW RATE >60V/μs S/N RATE >105 dB DAMPING FACTOR >500 COOLING SYSTEM HEATSINK AND FANS PROTECTION DC, short circuit, over load, clip limit, over heat, POWER SUPPLY AC220V/50Hz.±10% / AC110V/60Hz.±10% according to customer’s needs DIMENSION (mm) 376mm*142.5*82mm N.WKG） 3.8 kg
Build in DSP active module, lightweight, high reliability, work stable.
DSP is build with 30 different presets. Users can choose the presets according to their needs via PC.
-
8" line array speaker
10" line array speaker
12" line array speaker
8" stage monitor speaker
10" stage monitor speaker
12" stage monitor speaker
15" stage monitor speaker
- DSP4500 amplifier module software
Related Tags : DSP control module active speaker lightweight amplifier module active line array DSP module
