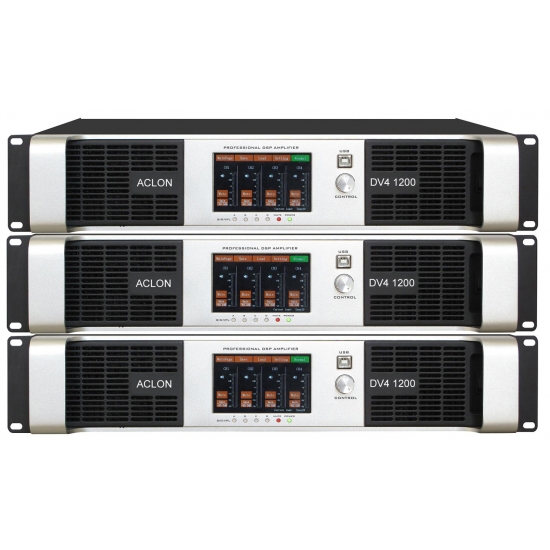

DV41200 four channel DSP switch amplifier< back

zoom in zoom out

move up move left move right move bottom

  • Specifications
  • Feature
  • Application
  • Download
  • Print
  • It is Light weight only 13KG

    It can be used for church,concert,nightclub,stadium,theater,speech,big live sound reinforcement etc

    Digital DSP amplifier DV series is big power amplifier, good quality, high stability, less heat, big power output.


    Model DV4600 DV4900 DV41200
    Output Power(20-20kHz, 1W with 1 kHz ) 4 Channel 4 Channel 4 Channel
    8ΩStereo Power(RMS) 4X600W 4X900W 4X1250W
    4ΩStereo Power(RMS) 4X1200W 4X1800W 4X2500W
    Damping factor >1000
    THD 20 Hz - 20 kHz for 1 W <0.1%
    Signal-to-Noise Ratio >112 dBA
    Channel separation (Cross talk) at 1 kHz >70 dB
    Frequency Response 20Hz-34KHz,+0/-0.3dB,1W/8Ω
    Input Connectors (per channel) 3-pin XLR, electronically balanced
    Output Connectors (per channel) Speakon
    Class circuitry Class D
    Cooling Front-to rear airflow, temperature controlled speed.
    Tour Class Protection short circuit, open circuit, direct voltage,ultralow frequency, high temperature, radio-frequency
    USB connector controlling paraments by software
    Internet input connector long-range control by connectingamplifier and internet
    Internet output connector multiple amplifiers on-line controlby connecting
    Operating voltage 110V / 230V / 220V, 50/60Hz
    Input impedance (unbalanced) 20 k Ohm (10k Ohm)
    Dimensions (H×W×D) 2U: 88×488×438mm
    Packing dimension 150×590×500mm
    Net weight (kg) 13 13 13
    Gross weight (kg) 16 16 16

Related Tags : DSP amplifier switching amplifier digital amplifier
