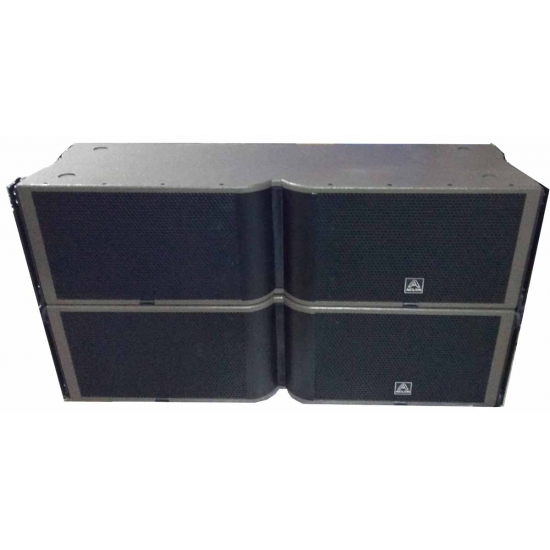

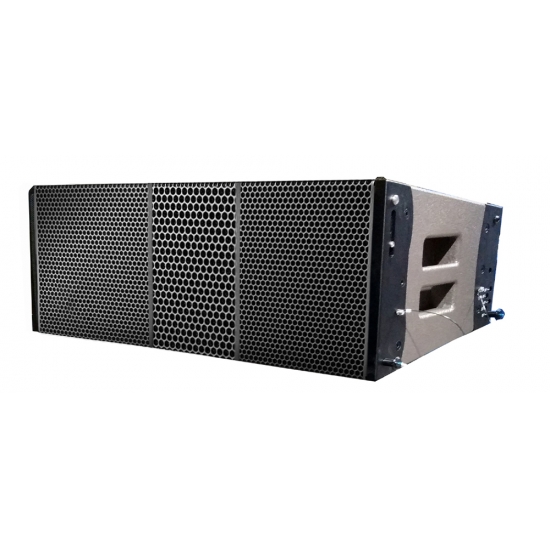

K15 series is large live concert high level line array speaker ,It build in customized neodymium woofer & driver imported from USA.
Low distortion, high sensitivity, strong&powerful! K15 is advanced technology and innovation representative.
K15 is dual 15’’ three way Large full range line array speaker
2X15" neodymium LF
4X6.5" Mid woofer
2X3" neodynium HF
Products Model: K15 K12 KS218 LF neodynium unit 2 x 15" 2X12" 2 x 18" MF mid woofer 4x 6.5" 4X6.5" / HF neodymium drivers 3X3" 2X3" / Horn & Exit throat Size 2x1.5" 2x1.5" / Dispersion Angle H90°x Vertical H90°x Vertical / RMS / program 1900W/3800W 1550W 3100W 2000W/4000W Peak power 5700W 4600W 6000W Nominal MAX /Peak SPL 132dB 132dB 140dB Frequency Response ( ±3dB) 33Hz~20KHz 33Hz~20KHz 30Hz~250Hz Crossover Frequency point 1200hz, 2.1KHz 1200hz, 2.1KHz 150 Hz Nominal Impedance LF/MF/HF: 8 Ohm LF/ MF: 8 ohm; HF: 16ohm 4 Ohms Input output Connector 2 *NL8 2 *NL8 2 *NL4 Dimension (mm) 1340×520×438 1338×354×400 1300 x 550x 700 Net Weight (1pcs) 80kg 56kg 93kg
Related Tags : K15 three way line array neodymium powerful line array speaker line array speaker
