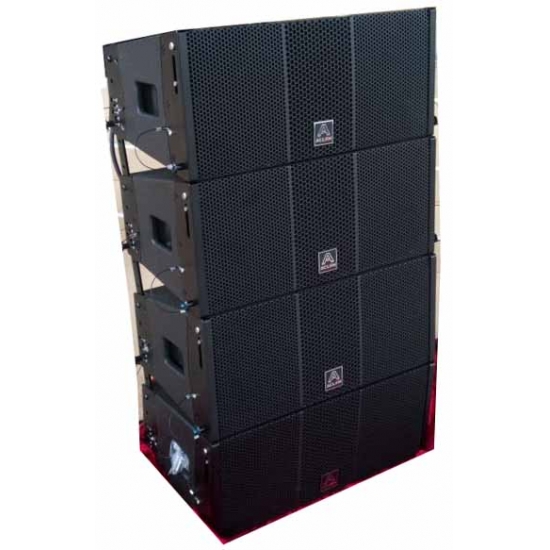

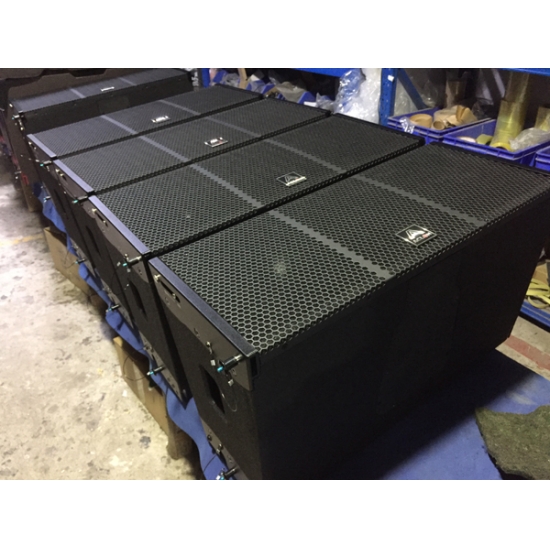

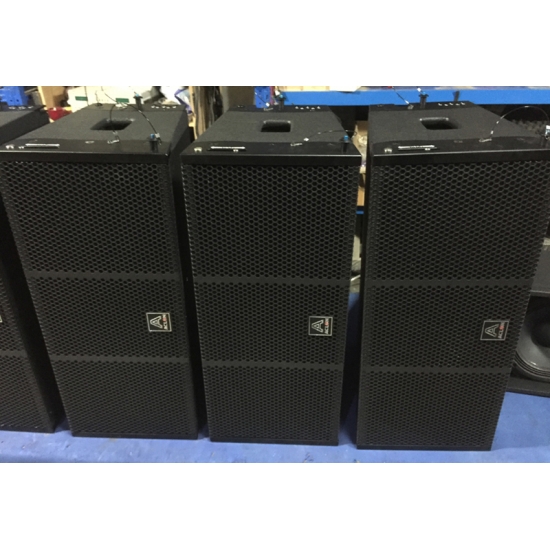

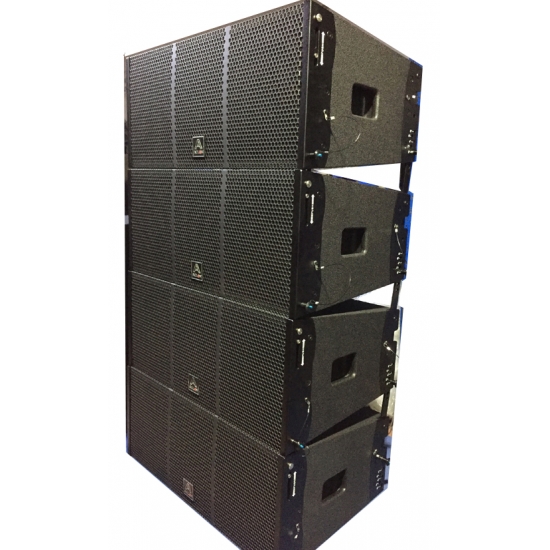

LAT-DSP is a 2-way DSP-controlled active mid-large line array speaker,
it is widely used in fixed-venue and full size events,such as church, wedding, auditorium, stadium, live concert etc.

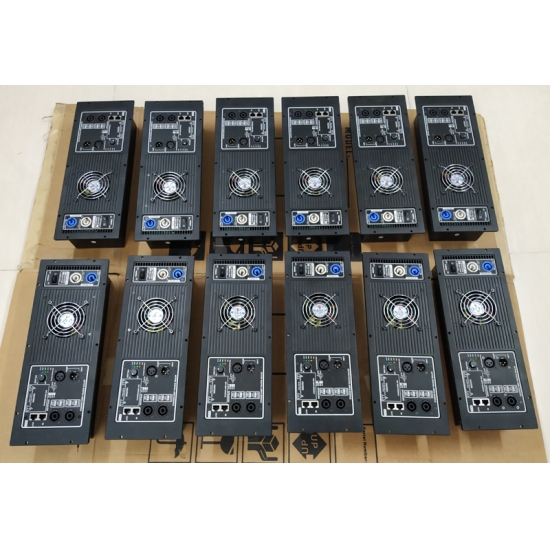

Adopted high quality woofer and neodymium driver, mounted ACLON customized dsp amplifier module in cabinet, high reliable, high performance.
ACLON LAT use imported from USA drivers, USA technology.
Great sound, high powerful and reliability are of paramount importance when on show.
Small in size and light on weight, ACLON speaker are easy to haul around.
Yet their efficiency enables amazing amount of reliable and great sounding power.
No matter if it’s auditorium show or club gigs.
Feature:
1. Two-way full range DSP active system
2. Wave guide horn
3. Customized driver HF, LF from USA brand
4. Rock solid birch plywood CNC made cabinet
5. Impedance: 4ohm
6. Fast installation rigging system
7. Comprehensive accessories suitable for different applications.
Products Model: LAT208A LAT210A LAT212A LAT118SA LAT218SA LF driver unit Inch 2 x 8" 2 x 10" 2 x 12" 1 x 18" 2 x 18" HF drivers 1 x 1.7" 1 x 3" 1 x 3" / / Dispersion Angle (H * V) H90°x 7° H90°x 7° H90°x 7° / / RMS / Program 700W /1400W 800W /1600W 1000W /2000W 800W/1600W 2000W/3000W Peak power 2100W 2400W 3000W 2400W 6000W Nominal MAX /Peak SPL 126dB 132dB 134dB 129dB 132dB Frequency Response( ±3dB) 45Hz - 20KHz 42Hz - 20KHz 42Hz - 20KHz 25Hz - 220Hz 35Hz - 220Hz Crossover Frequency point 2.0 KHz 1.9 KHz 1.9 KHz 150 Hz 150 Hz Nominal Impedance 4 Ohms Input output inside amps 2* XLR- INPUT /LINK LED indicators Active / Signal / Clip / Protect RS-485 / Network RS-485 / Network, USB Connector to Coumputer,For DSP function operation Protections DC protect.High temperature .Short circuit protect, Soft startup protect, overload protect Power amplifier Circuitry Class D Dimension (mm) 610*340*280 735*390*335 916*460*380 610*520*500 916*610*500 Net Weight (1pcs) 27kg 35 kg 40kg 49kg 64kg -
Application:

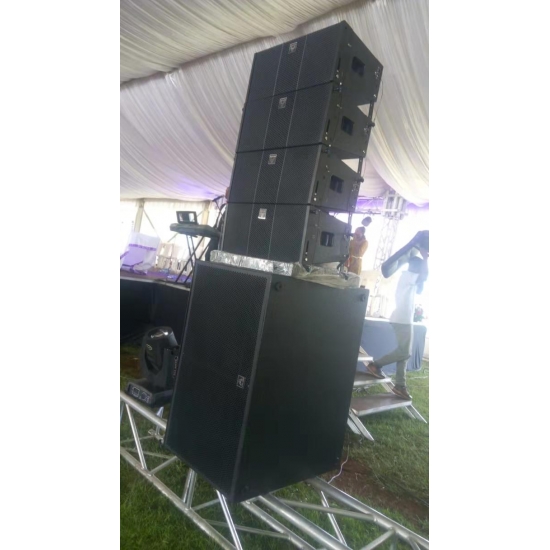

Theater places expand sound systems.
Touring FOH system
Audio & video presentations sound system
Mobile or permanently live concert reinforcement
