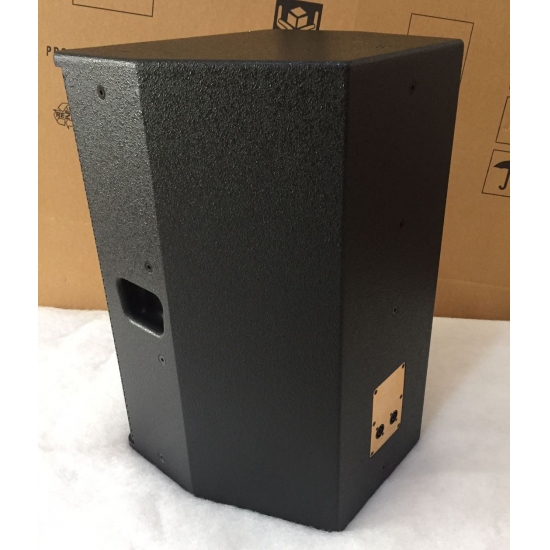

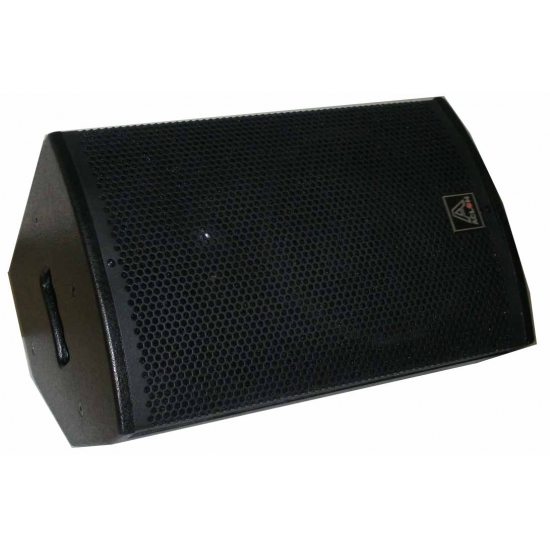

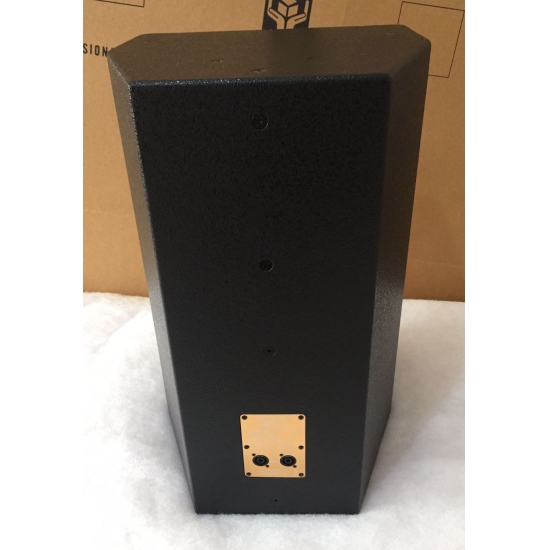

PS12 12" 400W full range loudspeaker< back

zoom in zoom out

move up move left move right move bottom

  • Specifications
  • Feature
  • Application
  • Download
  • Print
  • PS12 is 2-way full range loudspeaker

    plywood cabinet

    customized in ferrite woofer and driver

    high powerful, good sound, suit for church, wedding, club, disco, road show etc events


    Products Model:    PS12
    LF woofer unit  1 x 12" (φ75mm)
    HF  drivers  1 x 1.7"
    Horn & Exit throat Size  1"
    Dispersion Angle (H * V)  80° X 50°
    RMS / Program  400W
    Peak power  800W /1200W
    Nominal MAX /Peak SPL  129dB
    Frequency Response( ±3dB)  42Hz - 20KHz
    Crossover point  2.0  KHz
    Input  Connector   8 Ohms
    Dimension  W*D*H (mm)  390×595×358
    Net Weight   (1pcs)  22kg


  • . PA install and Unobtrusive powerful stage monitor performances .
    . Theater.houses of worship.broadcast.Disco etc.
    . The night club sound  reinforcement systems.
    . Audio & video presentations sound systems.
    . Fixed Installations system and Live sound reinforcement

  • Power amplifier and line array speaker manufacturer center

  • Power amplifier and line array speaker manufacturer center

Related Tags : plywood loudspeaker full range compact loudspeaker high powerful outdoor loudspeaker
