SN12A 12" 400W active full range loudspeaker< back

zoom in zoom out

Specifications
Feature
Application
Download
Print

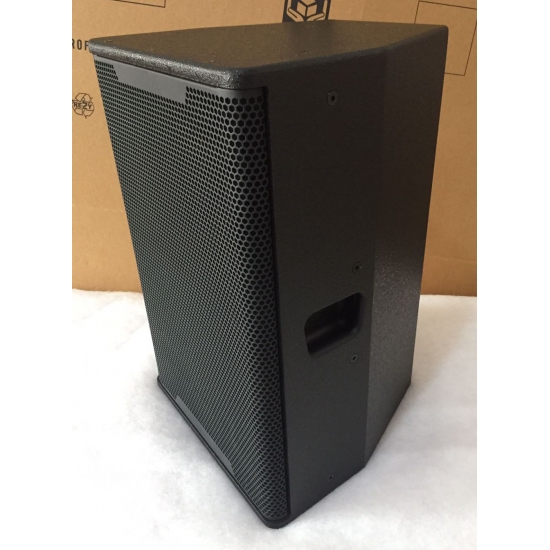

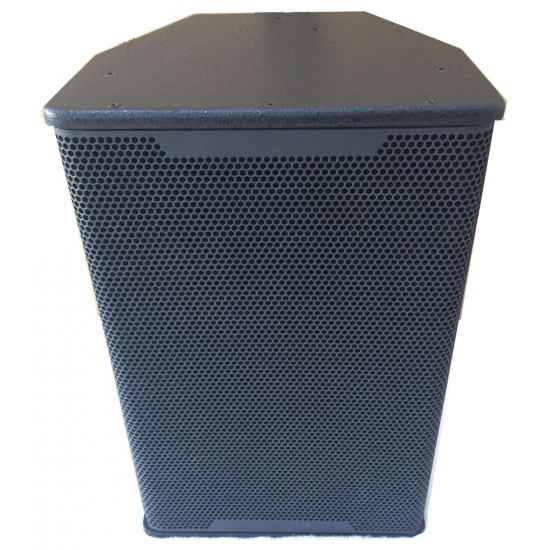

SN series is ultra-compact 2-way full range DSP active loudspeaker, build in customized ferrite woofer and driver, plywood cabinet; Powerful sound and good performance.

Compact cabinet, save shipping cost and easy to move and installation.

35 mm pole sockets and M 8 threaded insert - included for versatile mounting options.

suit for club, disco, road show, theater, university, wedding, church, conference room etc events.

Products Model:	SN10A	SN12A	SN15A	SN18SA	SN218SA
LF woofer unit	1 x 10"	1 x 12"	1 x 15"	1 x 18"	2 x 18"
HF drivers	1 x 1.4"	1 x 1.7"	1 x 1.7"	/	/
Horn & Exit throat Size	1"	1"	1"	/	/
Dispersion Angle (H * V)	80° X 50°	80° X 50°	80° X 50°	/	/
RMS / Program	300W	400W	450W	600W	1200W
Peak power	600W /900W	800W /1200W	900W / 1350W	1200W /1800W	2400W /3600W
Nominal MAX /Peak SPL	128dB	129dB	129dB	135 dB	136dB
Frequency Response( ±3dB)	43Hz - 20KHz	42Hz - 20KHz	40Hz - 20KHz	25Hz - 250Hz	25Hz - 250Hz
Input Connector	8 Ohms	8 Ohms	8 Ohms	8 Ohms	4 Ohms
Input output inside amps	2* XLR- INPUT /LINK
LED indicators	Active / Signal / Protect
RS-485 / Network	RS-485 / Network,For DSP function operation
Protections	DC protect.High temperature .Short circuit protect, Soft startup protect, overload protect
Power amplifier Circuitry	Class D
Cabinet size WDH (mm)	315320505	360390585	433410670	500×600×550	500×650×550
Carton box size (mm)	390400600	440470685	510490770	580680650	590740650
Cabinet Net Weight	19kg	27kg	37kg	61kg	82 kg
