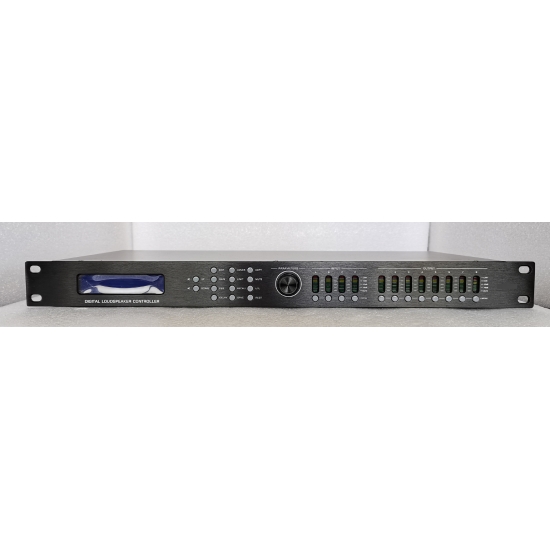

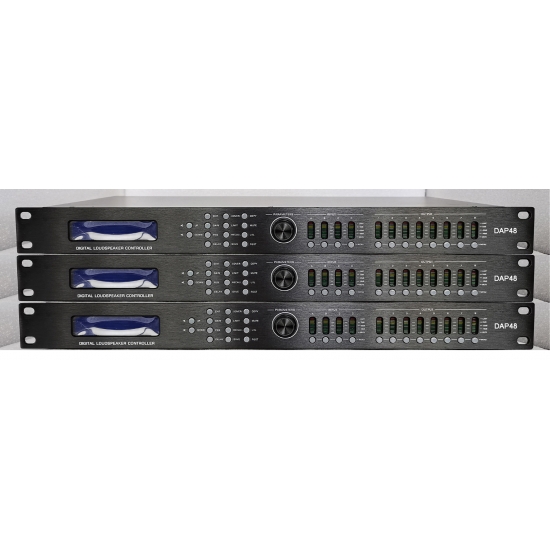

ACLON DAP48 DSP processor specification:
The digital signal processor DAP48, with accurately and widely for audio control function. Through front panel of interface function button, allow to send all of control parameters quickly.
Backlight 2x20 characteristic 、LCD display channel and function setup. Related button can access all of audio function and system tools. More speedy setup and powerful of visual input/output routing、EQ、filtering curve system、USB and RS-232 interface can control software and PC connected.
The advantage of software is that it includes very powerful preset ability, and it is very intuitive for audio routing and control processing, can be stored more than 30 type preset. (32bit)

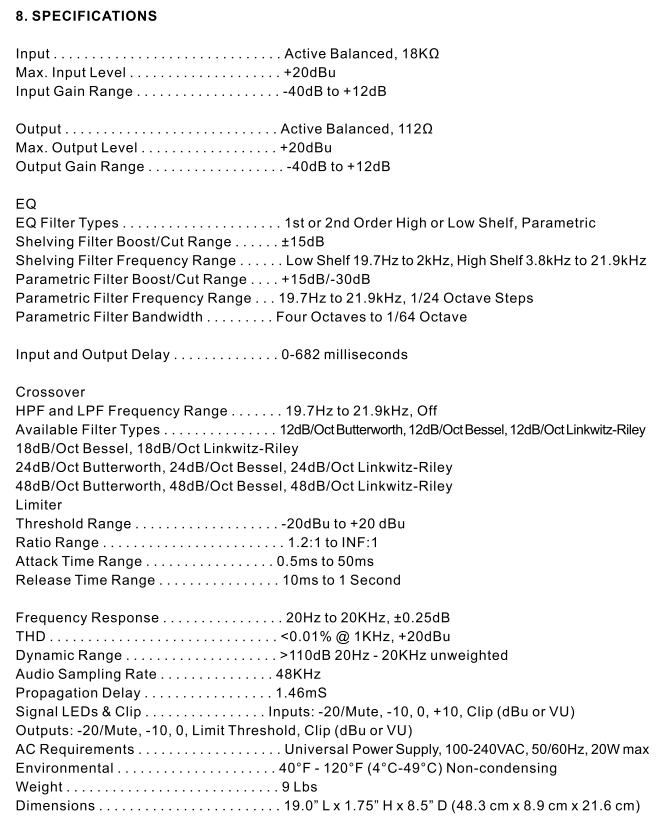

SPECIFICATIONS： • Input and output interface can be assigned to any one of output • Slope Rate: 12 dB/Oct，18 dB/Oct，24 dB • Oct and 48dB/Oct / 682 ms input delay, and 21 ms output delay • Adopting Linkwits-Riley, Bessel and Butterworth filters • Parametric equalizer: full bandwidth, from 1/64 to 4 octave range • 96 KHz sampling frequency • Independent input and output instructions
- Line array speaker processor
-
Application:
Theater places expand sound systems.
Touring FOH system
Audio & video presentations sound system
Mobile or permanently live concert reinforcement
-
DX84 processor specification
Related Tags : speaker digital processor DSP 8 out digital processor line array speaker processor
