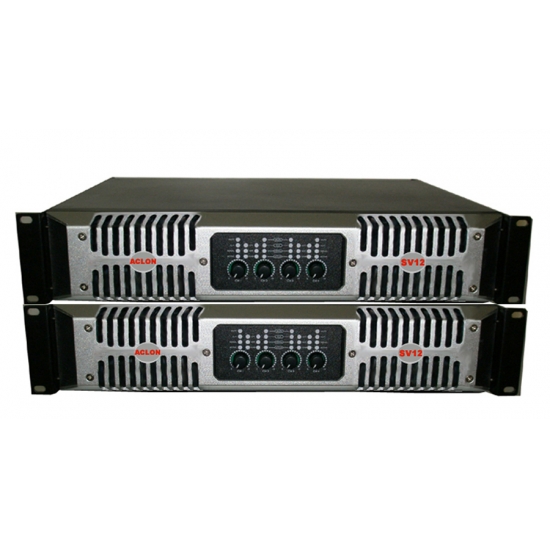

SV 4-channel lightweight switch amplifier< back

zoom in zoom out

move up move left move right move bottom

  • Specifications
  • Feature
  • Application
  • Download
  • Print
  • SV series power amplifier

    Professional high-end amplifier with stability, reliability and outstanding performance.



    This series included 5 models offer a range from 1000W to 2300W, work  stable at 2 ohm, it have 2 channel and 4 channel for you choose.



    SV series amplifier have a complete and high speed protection system in case of overheating, overloading, DC output etc. It has very clear and clean sound and high damping factor. Small in size and light in weight. ACLON amplifier are easy to haul around.



    It can be widely used in fixed-venue and touring performance such as church, bar, nightclub, theater, auditorium, museum, muti-functional hall, wedding etc.



    Feature:

    1. Class TD circuit with excellent stability and reliability.

    2. Net weight 13KG easy to move and installation.

    3. All is 2U-Rack

    4. Aluminum elegant panel

    5. Comprehensive protection system: DC, overload protection etc

    6. Very suitable for mobile show.

    7. Reasonable design makes you feel relaxed in the process of using.

    8. Highly cost effective.



    more Feature:

    *****It is Light weight only 13KG,supply 10000W power output
    *****It can be used for church,concert,nightclub,stadium,theater,speech,big live sound reinforcement etc
    *****Switching amplifier SV series is big power amplifier, good quality, high stability, less heat, big power output.
    *****The global power supply works anywhere in the world and offers PFC ( Power Factor Correction).
    *****It is a switching power supply easily deals with a very high variation in the AC
    *****mains voltage: it can drop by up to 20% below its nominal level (e.g. to 180VAC instead of 230VAC) without any loss of the amplifiers rated output power.
    *****Regulated power supply also presents some other sonic advantages, such as better cone control and the same fast response as a linear power supply.



    Model SV12 SV10 SV22 SV21 SV20
    Output Power(20-20kHz, 1W with 1kHz ) 4 Channel 4 Channel 2 Channel 2 Channel 2 Channel
    8ΩStereo Power(RMS) 1350WX4 1000WX4 2300WX2 1350WX2 1000WX2
    4ΩStereo Power(RMS) 2300WX4 1800WX4 4400WX2 2300WX2 1800WX2
    2ΩStereo Power(RMS) 2700WX4 2200WX4 7000WX2 2700WX2 2200WX2
    8ΩBridged Power(RMS) 4400WX2 3600WX2 8800W 4400W 3600W
    4ΩBridged Power(RMS) 5000WX2 4400WX2 14000W 5000W 4400W
    FrequencyResponse(+o/-0.3dB,1W/8Ω) 20 Hz - 34 kHz
    THD 20 Hz - 20 kHz for 1 W <0.1%
    Signal-to-Noise Ratio >112 dBA
    Damping factor >800 >800 >800 >800 >800
    Channel separation (Cross talk) at1 kHz >70 dB

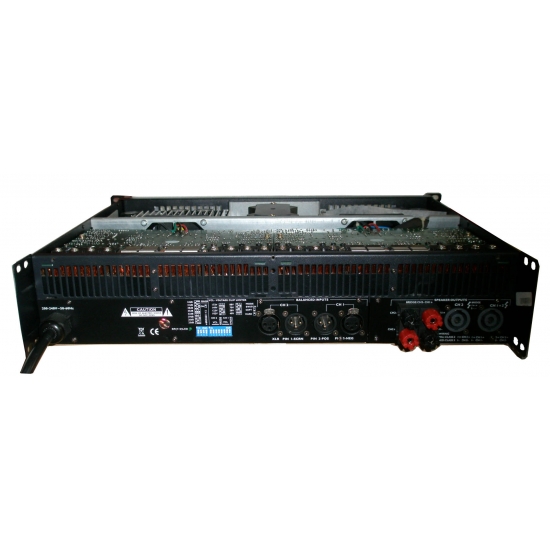

    Input Connectors (per channel) 3-pin XLR, electronically balanced
    Output Connectors (per channel) Speakon
    Class circuitry Class TD
    Tour Class Protection ACL, IGM, Auto Ramp, short circuit, DC voltage,
    turn-on/off transient, current inrush, sub/ultrasonic input
    Operating voltage, 230 V/115 V nominal 150-260 V50/60Hz, / 70-140 V 50/60Hz selectable
    Input impedance (unbalanced) 20 k Ohm (10k Ohm)
    Level adjustment (per ch.) Front-panel potentiometer, 31 position detente from -int 0 dB
    Dimensions (H×W×D) 2U: 88×483×396mm
    Packing dimension 180×560×500mm
    Net weight (kg) 13.5 13.5 13.5 13 13
    Gross weight (kg) 17 17 17 16 16
  • Application:

    Theater places expand sound systems.

    Touring FOH system

    Audio & video presentations sound system

    Mobile or permanently live concert reinforcement
