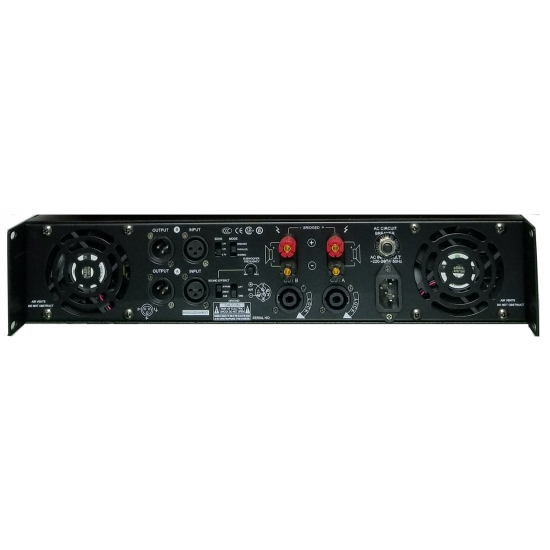

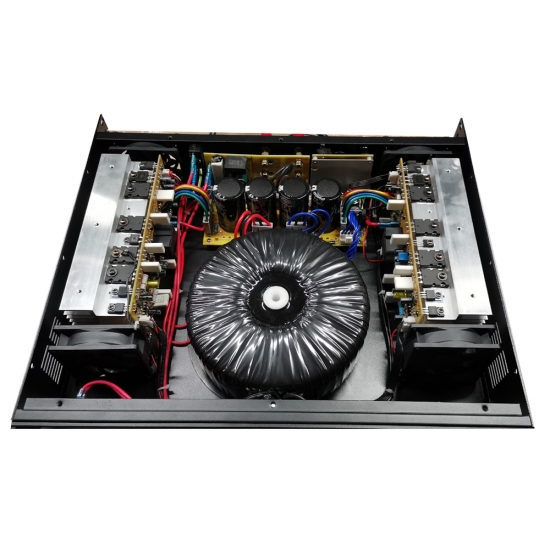

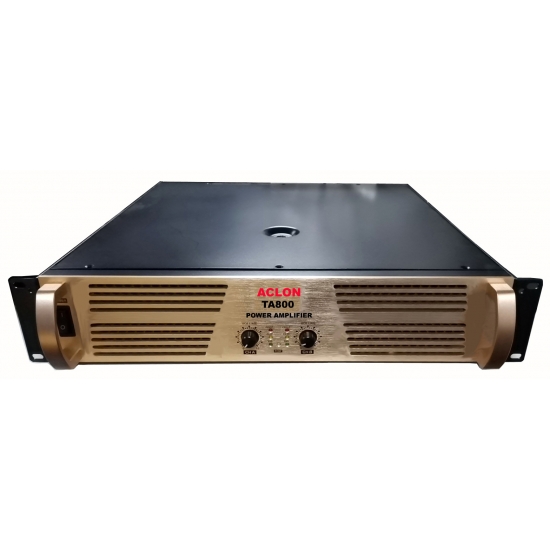

TA series is 2U rack transformer power amplifier, class H circuit, from 500W to 1200W at 8 ohm stereo. It can be used for church,concert,nightclub,stadium,theater,speech,big live sound reinforcement etc. Good quality, high stability, less heat, big power output.
Model TA500 TA600 TA800 TA1000 TA1200 8ΩStereo Power(RMS) 2X 500W 2X 600W 2X 800W 2X 1000W 2X 1200W 4ΩStereo Power(RMS) 2X 750W 2X 900W 2X 1200W 2X 1500W 2X 1800W Frequency response 20Hz-20KHz (+0 / -1 dB) THD THD 20 Hz - 20 kHz for 1 W: <0.03% Signal-to-Noise Ratio >110 dB Slew rate >40V/us Channel separation >80 dB Input Sensitivity 0.7V / 1V / 1.4 V Damping factor >400 Operating voltage 110V / 220V, 50/60Hz (factory configured) Input impedance 20 k/ 10k Ohm (balanced / unbalanced) Class circuitry H Tour Class Protection short circuit, open circuit, high temperature, radio-frequency, overvoltage protection etc Dimensions 485*450*85MM Net weight (kg) 18 20 24 26 27 Gross weight (kg) 21 23 27 29 30 -
Theater places expand sound systems.
Touring FOH system
Audio & video presentations sound system
Mobile or permanently live concert reinforcement
