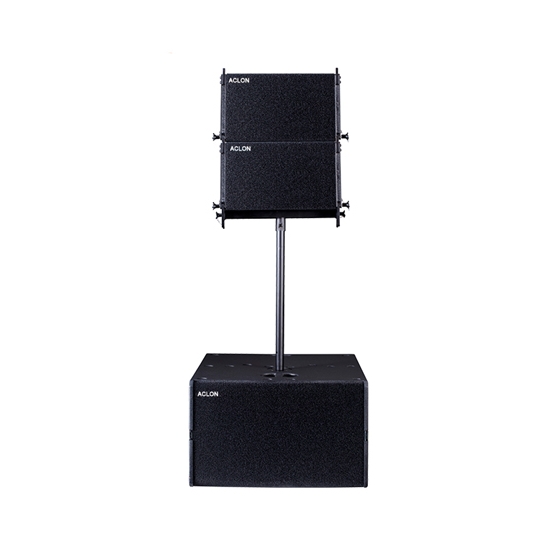

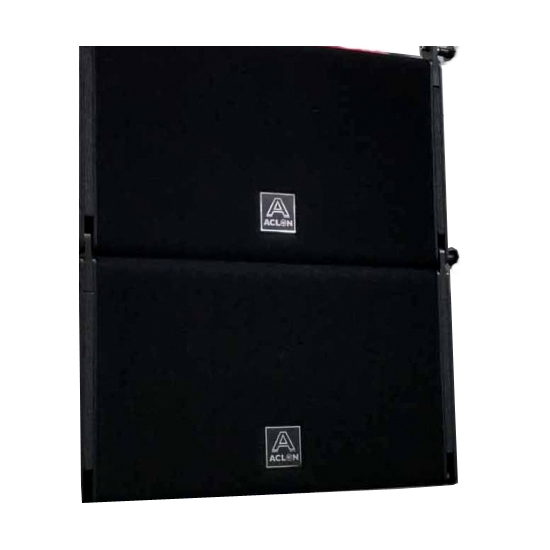

VR10 line array speaker:
VR10 is an extremely compact 10” two way line-array system.
With an amazing SPL to size ratio, it can be used as a sound reinforcement in small to mid-size venues as well as in fixed installation.
Products are being manufactured by using highest grade materials and processed on CNC machines with latest technology.
We are ready to export our goods to globalized world.
Brief:
Two-way passive system
Birch plywood cabinet
Wave guide horn
Customized neodymium HF, LF
Program: 800W
Impedance: 16ohm
Net weight: 18KG
Weather-resistant, multipurpose, plug and play
Recommend amplifier: DH800, CA9, SDA600
Application:
Theater places expand sound systems.
Touring FOH system
Audio & video presentations sound system
Mobile or permanently live concert reinforcement
Model
VR10
VR18S
Drivers
2 x 1.7" HF driver
/
Woofer
1x10” LF woofer
1x18” LF subwoofer
Rated power
400W
600W
Program
800W
1200W
Peak power
1200W
1800W
Frequency range
60 - 15000 Hz
35 - 200 Hz
Impedance
16 ohms
4 ohms
Coverage range (h x v)
80° or 120 ° x 10°
/
Sensitivity 1 W / 1 m
103 dB biamped LF
112 dB biamped HF
98 dB
SPLmax / 1 m / peak
133 dB
133 dB
Dimensions (h x w x d)
275 x 500 x 355 mm
447*705*400mm
Finish
polyurethane coating
polyurethane coating
Color
Black or white
Black or white
Enclosure material
Birch plywood
Birch plywood
Net weight
18kg
40KG
Gross weight
20kg
43KG
Related Tags : compact lightweight line array speaker high powerful outdoor loudspeaker line array speaker
