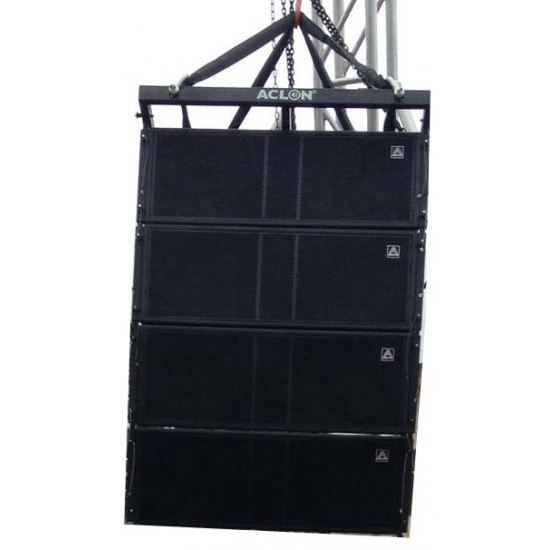

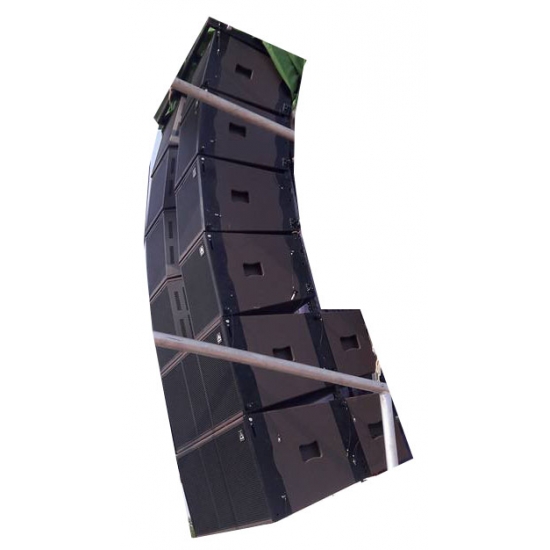

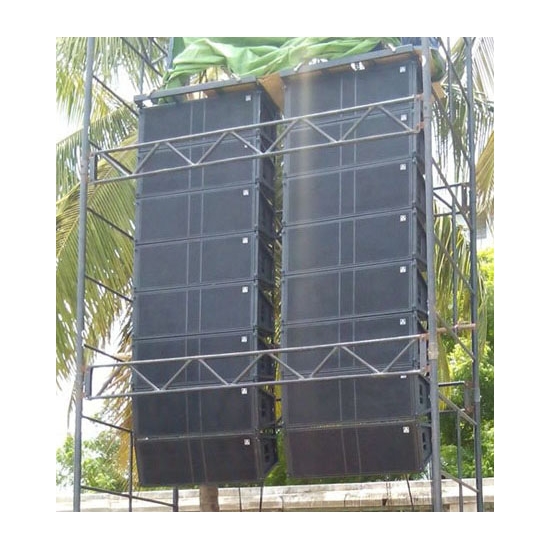

VT215 is 3-way full range line array speaker
buld in neodymium drivers
wave guide horn
plywood cabinet
during rigging
high output, high performance, great sound, suit for road show, stadium, live concert etc events.
Products Model: VT215 VT218S LF neodynium unit 2 x 15" 2 x 18" MF mid woofer 4x 6.5" / HF neodymium drivers 2X3" / Horn & Exit throat Size 2x1.5" / Dispersion Angle H90°x Vertical / RMS / program 1700W/3400W 2000W/4000W Peak power 5100W 6000W Nominal MAX /Peak SPL 136dB 129dB Frequency Response ( ±3dB) 60Hz - 19KHz 25Hz - 250Hz Crossover Frequency point 1200hz, 2.1KHz 150 Hz Nominal Impedance LF/ MF: 8 ohm; HF: 16ohm 4 Ohms Input output Connector 2 *NL8 2 *NL4 Dimension (mm) 1260x560x 490 1260 x560 x 700 Net Weight (1pcs) 65kg 87kg -
Feature:
1. Birch plywood 18mm, weather-resistant, scratch-resistant;
2. Wave guide horn, dispersion Angle: H90°x Vertical splay Angle
3. Imported drivers, powerful & perfect sound.
4. Large & multipurpose enclosed. It can hang in the air or stack on the ground.
5. Black or white color
6. Normal impedance: 8ohm
7. Hardware is included, just plug and play
8. Net weight: 46KG
-
Application:
Theater places expand sound systems.
Touring FOH system
Audio & video presentations sound system
Mobile or permanently live concert reinforcement
-
Power amplifier and line array speaker
-
amplifier and speaker
