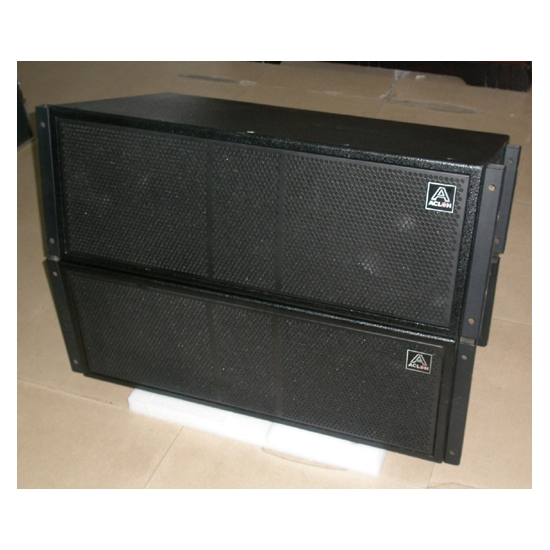

ACLON VT4-12 is a 3-way dual 12” line array speaker, It build in customized neodymium woofer & driver imported from USA. USA technology.
We have enhance woofer sensitivity, watt and sound, even if without subwoofer, the top speaker also play very strong low frequency.
VT4-12 has the most distinguished features are More powerful, more compact, lightweight, far projection distance, high sensitivity, strong penetration, and reliable running.
VT4-12 is designed for sports stadiums, road show, live concert etc indoor & outdoor performance venues.
VT4-12 specification:
Frequency Response
50Hz-18KHz
Driver
LF:2 x 12" high efficiency Neodymium woofer

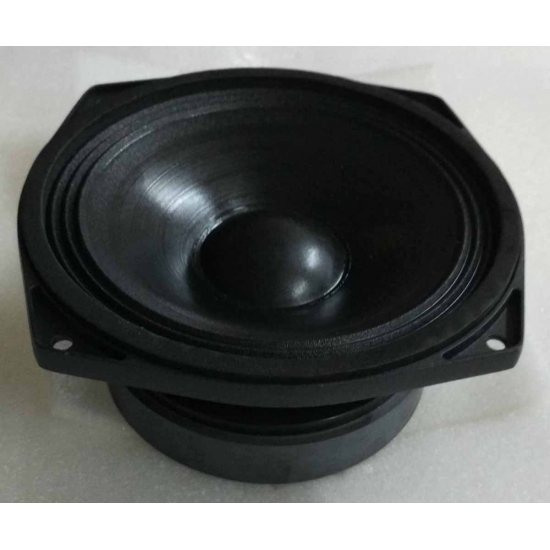

MF:4 x 6.5" high efficiency mid woofer
HF:2 x 3" high efficiency Neodymium driver
Power Rating
LF:2000W
MF:600W
HF:150W
Nominal impedance
LF:8 ohms
MF:8 ohms
HF:16 ohms
Sensitivity(1W/1M)
LF:98 dB
MF:102 dB
HF:114 dB
High-freq. disp. (H°xV°)
90°×10°
Dimension(HxWxD)
360 mm x 991 mm x 508 mm
Net Weight(kg)
57KG
Excellent after-sales service: 1. We supply 2-year warranty. 2. Supply schematic diagram, specification, catalogue, manual and technology support at any time. 3. Supply spare parts such as: fuse, transistor, LED, knob, fans for amplifier, and recone kit, horn, diaphragm etc
for speaker which may be damaged following delivery.
Within the warranty period, if the amplifier / speaker is burned, please tell me issue describe,
then we will give you repair instruction with picture. Just ask your technician replace burned components, then solve problem.
But it is only for damaged components, if you want the complete boards for swap, you should pay it and charge shipping cost.
Our advantages 1. Imported USA component, USA technology. 2. Fast production lead time; 3. High quality and competitive price; 4. Professional factory. Workers are working with rich experience and good workmanship. 5. Product sound and performance it can compare with international famous brand. -
Feature:
1. Birch plywood 18mm, weather-resistant, scratch-resistant;
2. Wave guide horn, dispersion Angle: H90°x Vertical splay Angle
3. Imported drivers, powerful & perfect sound.

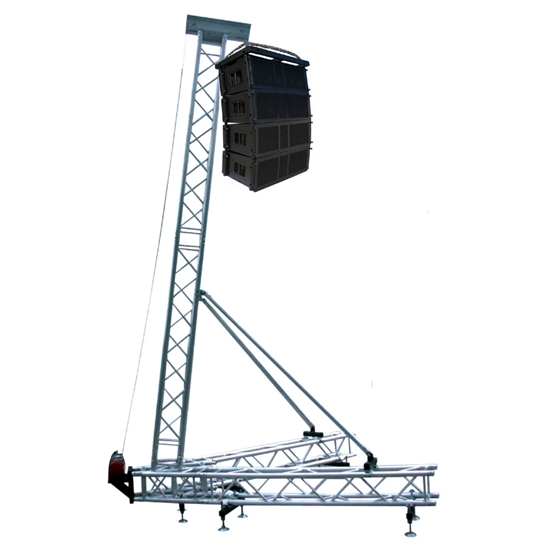

4. Large & multipurpose enclosed. It can hang in the air or stack on the ground.
5. Black or white color
6. Normal impedance: 8ohm
7. Hardware is included, just plug and play
8. Net weight: 65KG
-
Application:
Theater places expand sound systems.
Touring FOH system
Audio & video presentations sound system
Mobile or permanently live concert reinforcement
-
Power amplifier and line array speaker
-
amplifier and speaker
