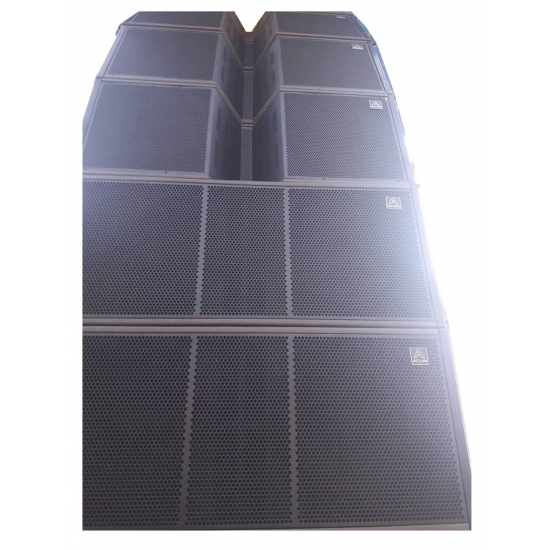

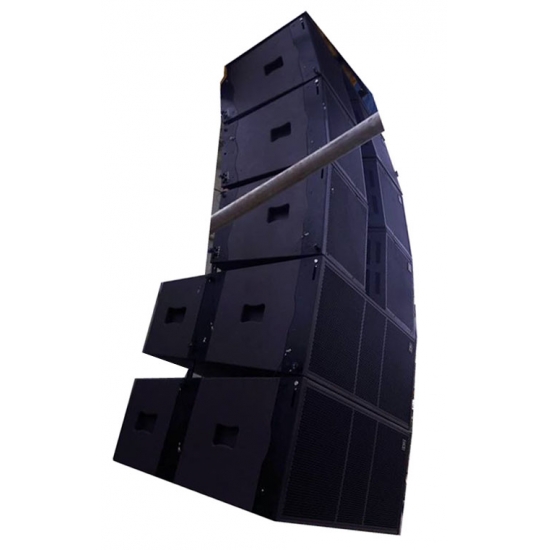

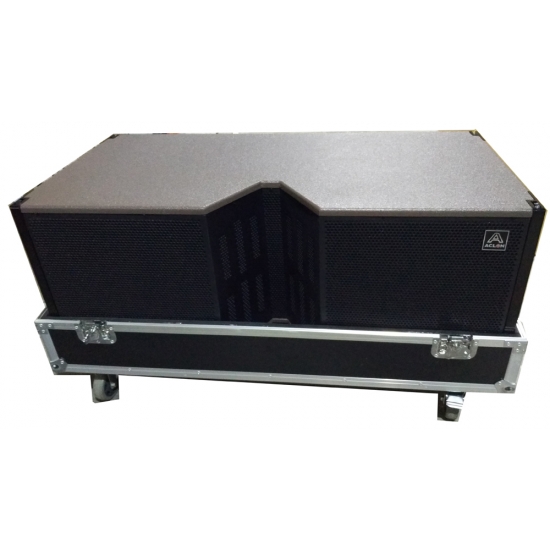

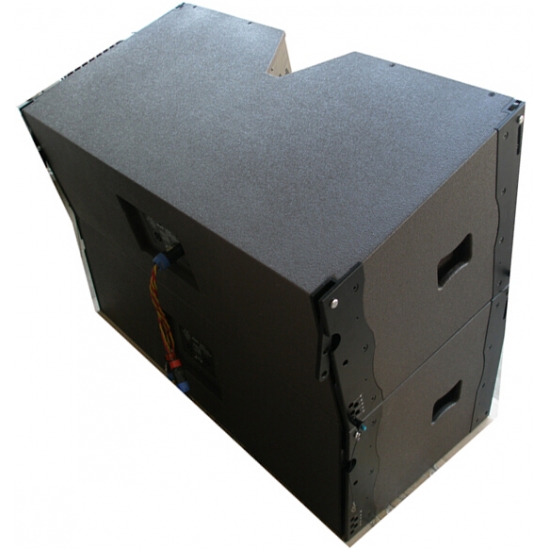

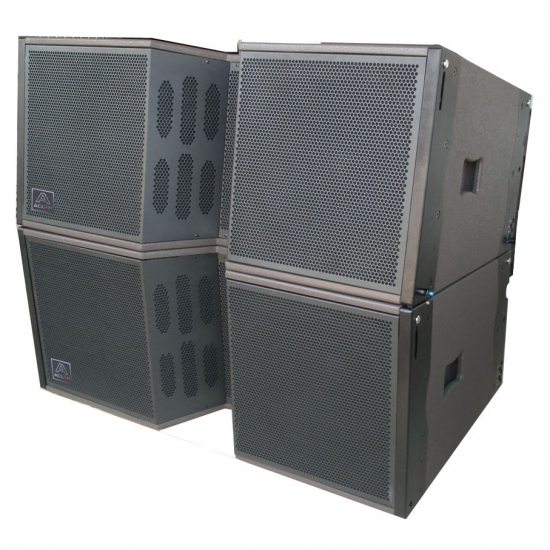

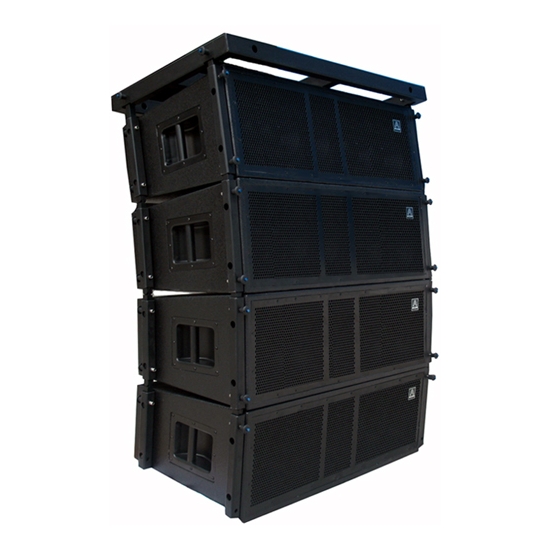

VT622 2400W three way line array speaker< back

zoom in zoom out

move up move left move right move bottom

  • Specifications
  • Feature
  • Application
  • Download
  • Print

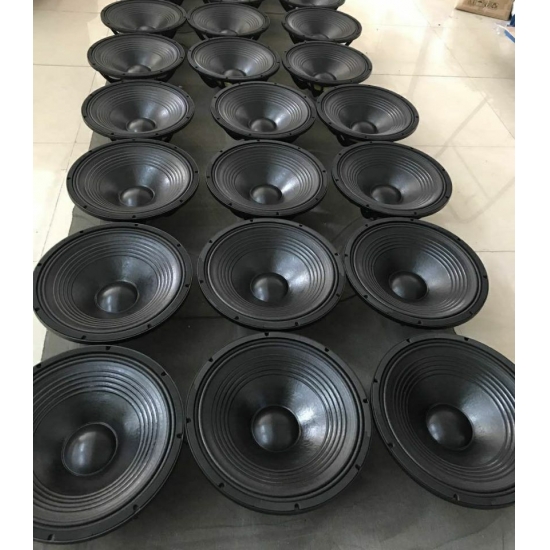

  • VT series is large live concert high level line array speaker ,It build in customized neodymium woofer & driver imported from USA.

    Low distortion, high sensitivity, strong&powerful! VT215 is advanced technology and innovation representative.


    Products Model:    VT212    VT215    VT225   VT218S
    LF neodynium unit  2 x 12" (φ75mm)   2 x 15"    2 x 15"   2 x 18"
    MF mid woofer  4X6.5" (φ38mm)     4x 6.5"    4X8" neo    /
    HF neodymium drivers  2X3"   2X3"    2X3"   /
    Horn & Exit throat Size  2x1.5"(38mm)   2x1.5"   2x1.5"   /
    Dispersion Angle  H90°x Vertical    H90°x Vertical    H90°x Vertical    /
    RMS / program  1500W/3000W    1700W/3400W    2000W/4000W  2000W/4000W
    Peak power  4500W   5100W   6000W  6000W
    Nominal MAX /Peak SPL  135dB   136dB   138dB  129dB

    Frequency Response

    ( ±3dB)

     64Hz - 19KHz    60Hz - 19KHz    60Hz - 19KHz    25Hz - 250Hz
    Crossover Frequency point  1200hz, 2.1KHz   1200hz, 2.1KHz   1200hz, 2.1KHz   150 Hz
    Nominal Impedance  LF/ MF: 8 ohm; HF: 16ohm   LF/ MF: 8 ohm; HF: 16ohm   LF/ MF: 8 ohm; HF: 16ohm   4 Ohms

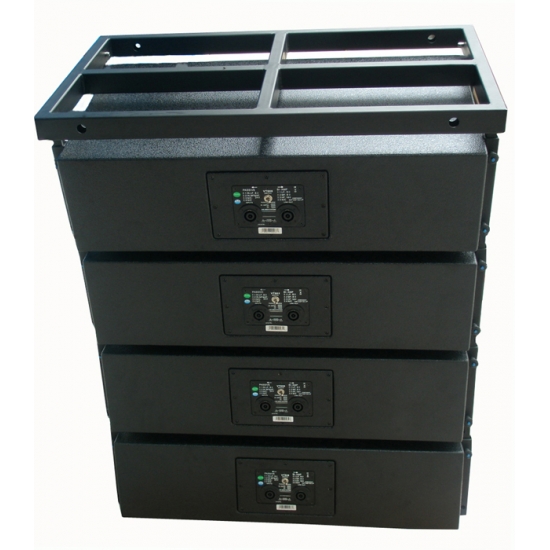

    Input output Connector   2 *NL8    2 *NL8    2 *NL8    2 *NL4
    Dimension (mm)  1080x530x380    1260x560x 490   1195*560*610   1260 x560 x 700
    Net Weight   (1pcs)  56 kg    65kg   70KG   87kg

  • Application:

    Theater places expand sound systems.

    Touring FOH system

    Audio & video presentations sound system

    Mobile or permanently live concert reinforcement
